Raise your hand in case you answered that the distinction between a single and dual-clutch transmission is one clutch. Excellent. We’re midway dwelling.

Single-clutch and dual-clutch transmissions differ in how they’re designed to pick out gears, however they really share fundamentals. Power reaches the drive wheels by transferring engine torque by means of a rotating, gear-lined enter shaft — coupled to the engine flywheel through the clutch — that meshes with gears on a corresponding output shaft. The thought is to pick out gears that work in concord with the engine as revs improve and reduce, whether or not there’s one clutch or two.

Their roads diverge from right here. Single-clutch transmissions, typically referred to as SCTs, use one shaft for enter gears and one other for output gears. Only a single gear may be chosen and engaged at a time, both manually, as with a clutch pedal and shifter, or electronically. Dual-clutch transmissions — typically DCTs for brief — commerce a clutch pedal for an additional clutch, one for odd gears, and one for even gears, and separate these odd and even gears on two shafts. The clutches function electronically. That means whilst you’re tooling round in third gear by means of one clutch, the opposite is pre-selecting the subsequent gear — say, second or fourth — to be engaged nearly immediately. Manual enter is elective.

Clutches do the identical factor in single- and dual-clutch designs: they act as energy brokers between engine and transmission. When an engine revs, it sends energy by means of the crankshaft to a flywheel, which harnesses and makes that energy easily transferable to the clutch, which connects to the transmission enter shaft.

A clutch is a set of three elements that sandwich collectively: a clutch disc, which mounts on the transmission enter shaft splines like a document on a turntable hub, and grips the face of the flywheel; a strain plate that holds the clutch disc to the flywheel face; and a diaphragm spring, which helps the strain plate preserve the clutch disc in touch with the flywheel.

In a operated by hand single-clutch transmission automobile, an arm, or clutch fork, pivots behind the strain plate like a bit crowbar to alleviate rigidity on the diaphragm spring, uncouple clutch from flywheel, and engine from transmission. Depressing the clutch pedal strikes that fork.

The unholy crunching sound of a poorly executed guide gear shift is the results of ill-timed clutch-flywheel engagement beneath throttle — or attempting to shift with out miserable the clutch — forcing gears to mingle at totally different speeds. Dual-clutch transmissions keep away from that noise by having electronics do the faucet dance.

Single-clutch transmission roots date not less than to 1891, with French inventor Louis-René Panhard’s sliding gear system. Borg & Beck’s George Borg launched notable clutch design refinements in 1910 that mirror fashionable designs, regardless of not understanding drive. Materials have improved, but the operation of a guide SCT stays the identical as we speak.

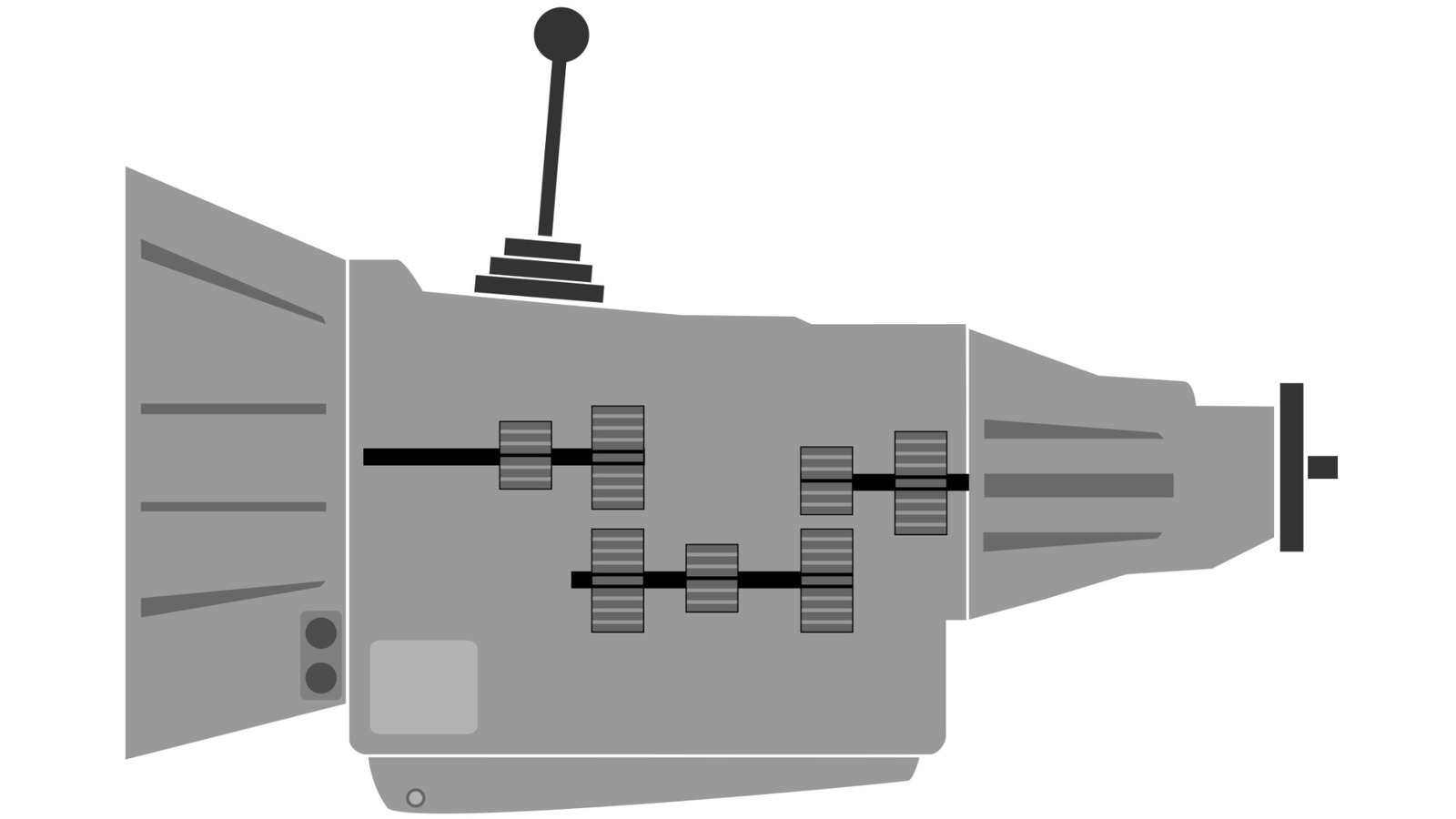

Inside a single-clutch automobile transmission, the gear units are stacked sequentially on the enter and output shafts — first, second, third, and so forth. You’re all the time transferring up and down this line, for so long as it takes to maneuver from gear to gear as you speed up and decelerate.

Input gears are fastened in place alongside the enter shaft, so the entire meeting spins when the clutch is engaged. The output gears rotate freely on the output shaft, and do not switch energy till they’re locked into place by transferring the gear shift selector by means of its sample. (Selecting reverse cuts into the enter/output occasion with a nifty gear set by itself shaft, designed to spin the output shaft in the wrong way.)

Depressing a clutch pedal successfully cuts energy from the transmission on that single row of gears, so you may rifle by means of modifications manually — which is how single-clutch transmissions have largely soldiered on — however there are digital examples on the SCT household tree. The sequential unit within the 2002 E46 BMW M3 SMG boldly minimize out the clutch pedal in favor of a computer-controlled electro-hydraulic system. It was revolutionary, however some readers felt it ruined an incredible automobile.

Dual-clutch transmissions hit showrooms with the 2003 Volkswagen Golf R32, however their DNA dates again to Adolphe Kegresse in Thirties France. Porsche’s fashionable PDK system sprang from the corporate’s Sixties dual-clutch prototype that was refined within the Nineteen Eighties. Back then, Porsche took its new toy racing, successful with it at Monza in 1986, whereas Audi savored dual-clutch victory within the 1985 Semperit-Rallye. In addition to these Volkswagen Group marques, BMW, Chevrolet, Hyundai, and Nissan have additionally, in partnership with firms like Borg Warner, Getrag, Tremec and ZF, introduced dual-clutch models to market.

Driving a dual-clutch is like having two transmissions at your exact command to alternate between by flicking a toggle change. Power is sort of continually being transferred to the wheels with effectivity. One clutch controls your odd-numbered one-three-five gear shaft, whereas the opposite clutch controls even-numbered two-four-six gears on one other — and these shafts can rotate independently. So past merely lining up the subsequent gear for enter, the opposite clutch already has the subsequent gear spinning, and may electronically kick it in inside milliseconds by participating one clutch, and slicing off the opposite one.

It’s attainable to pulse down from sixth straight to 3rd gear onto an exit ramp — with out hellish grinding — due to how dual-clutches can bounce between these respective gear shafts. One clutch with one gear set on one output shaft cannot pull that trick, even with digital oversight.

Dual-clutches allow you to select your individual journey in guide mode, typically with paddles on the steering wheel or a bump of selector stick on the console. Or all of this may be performed mechanically for you — however dual-clutches and automatics are totally different beasts.

Despite having laptop brains with an automated mode, dual-clutch transmissions usually are not automatics. How automatics change gears is an entire different story, starring torque converters and planetary gearsets. General Motors launched the primary absolutely automated transmission on 1940 Oldsmobiles as an interesting, handy various to DIY gear choice. While automatics proceed to enhance, and are the mainstream alternative as we speak, single-clutch manuals stay fashionable in fanatic circles.

The dual-clutch transmission, with its single-clutch-like coronary heart and automated mind, goals to supply one of the best of each worlds: easy metropolis consolation for the highway, with track-day chops on the prepared. The swift, on/off nature of dual-clutch shift engagement can really feel abrupt or jarring at low speeds inching up at stoplights, however fashionable dual-clutches characteristic totally different driving modes that assist overcome this sensation. Even for essentially the most ardent clutch pedal disciples — to not point out these of us who’ve a balky left knee — quickly flicking by means of dual-clutch gears with out having to make use of a pedal can ship its personal particular, liberating thrill.

Since BMW ditched its electronically-controlled SMG choices in 2010, you will need to hit the used market to discover a single-clutch transmission that is not a guide. Shopping for a automobile with a guide in 2025 affords some nice selections, just like the Acura Integra Type S, Honda Civic Si, BMW M2, or the Ford Bronco and Jeep Wrangler in case you’re on the lookout for one thing rugged. For some folks, guide shifting affords a direct connection and pleasure that may’t get replaced, even when clutch work is usually a complete ache to stay with in metropolis driving and site visitors.

Porsche and Audi provide double-clutch transmissions of their lineup, as does Hyundai, and the Volkswagen Golf GTI rocks one as effectively. While there are whispers of a guide C8 Corvette, that automobile is at the moment solely accessible with a DCT. As you may most likely inform from that checklist, double-clutches skew in direction of the efficiency aspect of the market.

Car firms might love DCTs, however additionally they have some trade-offs for anybody looking for the absolutely automated expertise. Ridiculously quick gear modifications, and the power to shift with each fingers on the wheel, make double-clutch transmissions well-suited for fanatics who like to regulate the motion, however may also admire with the ability to kick issues into auto now and again.
